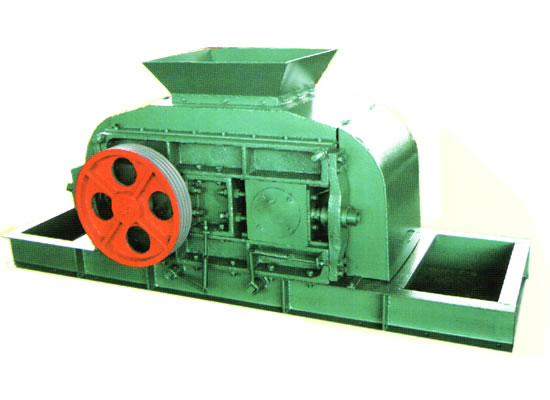

Lz-700型高锰钢细碎对辊机
| 产品介绍： |
| 该机为原料的粉碎碾练设备。辊圈材料采用耐磨球铁和合金钢，并经淬火处理。硬度分别可达HRC60°、62°，HRC48°，55°；辊圈子上没有布料器，不但整个辊圈宽度上均可发挥破碎作用，提高破碎细度和产量，也可使辊圈均匀磨损，有效解决辊圈中间拉槽现象。 |
| This machine is mainly used for crushing and pulerizing .The arc is made of wear-resist cast iron and alloy steel.and has been quenched to HRc60-62,HRC48-55.A cloth machine on the arc can not only crush but also prevent dragging the trough. |
| 技术参数： |
规格型号 |
生产能力 |
出料粒度 |
辊桶角速转/分 |
辊桶线速M/MIN |
配用动力KW |
配用三角带 |
外型尺寸长*宽*高 |
GS80×60 |
25-40 |
≤3 |
209 |
182 |
525 |
457 |
Y6-22×2 |
|
2300×1450×1500 |
GS70×50 |
20-35 |
3 |
233 |
210 |
512 |
462 |
Y6-18.5×2 |
|
2300×1400×1450 |
GS60×50 |
15-30 |
3 |
208 |
189 |
392 |
356 |
Y6-15×2 |
128×4000 |
2200×1400×1450 |
|
|
|
